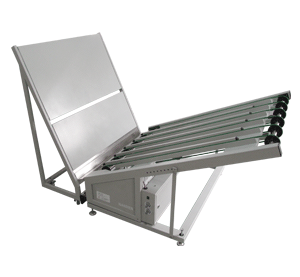

NR 自动收自架
|
※同时支持CTP冲版机和普通PS版冲版机(可任意组合、选配) ※It supports CTP Plate processor and conventional PS plate processor as well. (Adapting as you like) |
|
- 安全依照国际规格设计的收版机,在前方感应到冲版机所传出的PS版后立即启动向下传动马达。PS版抵达下端定位后,再由感应器启动翻版马达,将PS版送上集版架。一切过程自动完成,无需人为照顾
- 翻版过程进行中如遇到有人为阻碍能自动停止一切操作,并发出警告声
- 单独分离的集版架,可依工厂实际需要增加选购
- 全系列有欧洲CE认证,完全合乎世界安全规格
- The Stacker is designed by the international safety standard, as soon as it sensors the plate, it will start the motor for moving. When the plate come to the site, another motor will start, transform the plate to the stacker. All of processing is working automatically, no need manually operation.
- If you meet somebody disturbing the processing during the operation of turning the plate, it will stop automatically, as well alarming.
- The stacker is substantive, you can order more according to your needs.
- We have got the certification by CE, so it is in accordance with the world safety standard.
|
技术参数 TECHNICAL PARAMETER
机型 MODEL
| 66 Stacker | 88 Stacker | 110 Stacker | 130 Stacker |
最大版面宽度 Max plate width |
660mm
|
880mm
|
1100mm
|
1300mm
|
电源 Power |
单相 AC 196-264V 50-60Hz, 2Amps
|
包装尺寸(L×W×H)-大 Packing size(L×W×H)Large |
1750×1150×1180
|
1750×1300×1180
|
1750×1450×1180
|
2200×1750×1280
|
包装尺寸(L×W×H)-中 Packing size(L×W×H)Medium |
1350×1100×1180
|
1350×1300×1180
|
1350×1450×1180
|
1350×1750×1180
|
包装尺寸(L×W×H)-小 Packing size(L×W×H)Small |
1600×1100×1280
|
1600×1300×1280
|
1600×1500×1280
|
1600×1800×1280
|
机器净重-大 Net weight-L |
140KG
|
160KG
|
200KG
|
230KG
|
机器净重-中 Net weight-M |
110KG
|
140KG
|
150KG
|
190KG
|
机器净重-小 Net weight-S |
117KG
|
135KG
|
150KG
|
160KG
|
机器毛重-大 Gross weight-L |
280KG
|
310KG
|
370KG
|
440KG
|
机器毛重-中 Gross weight-M |
210KG
|
250KG
|
270KG
|
320KG
|
机器毛重-小 Gross weight-S |
220KG
|
255KG
|
275KG
|
330KG
|
若因需要而变更设计,恕不另行通告。 Sorry for no information, If we will change the design. |
|
|
|
|
